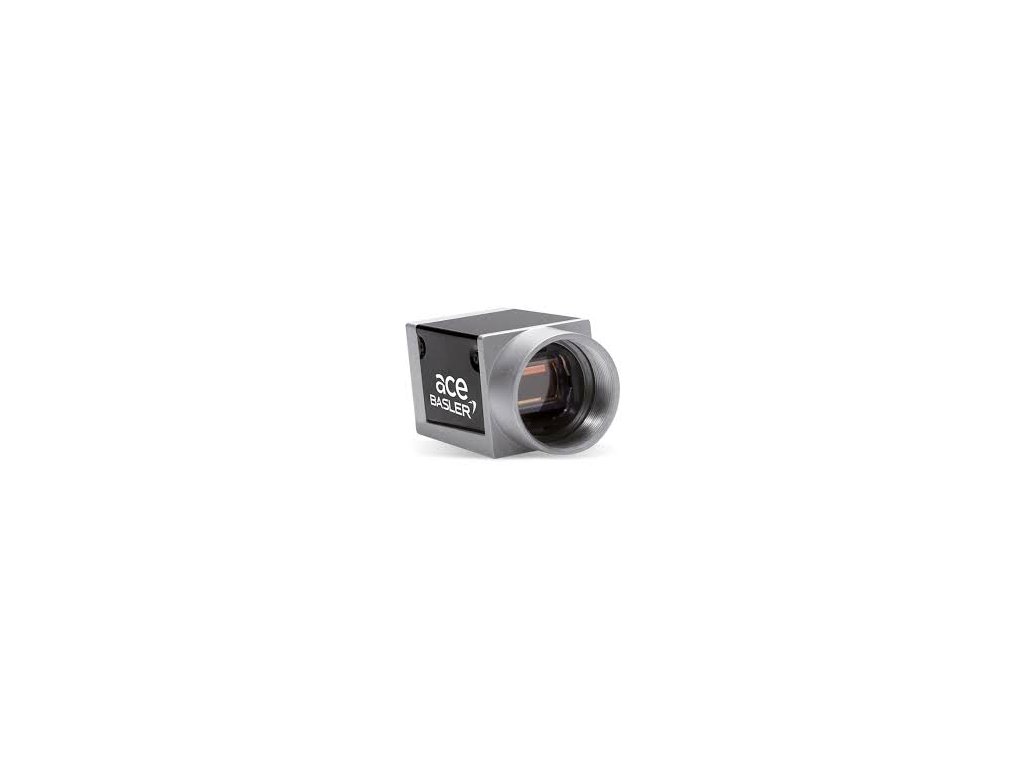

    Basler a2A1920-51gm

    Kód: 47
    stažený soubor
    14 112 Kč
    2 ks skladem
    Můžeme doručit do:
    19.6.2025

    General Specifications#

    a2A1920-51gcPRO
    Resolution (H x V Pixels) 1936 x 1216 (full resolution)
    1920 x 1200 (default resolution)
    Resolution 2.3 MP
    Sensor Type Sony IMX392LQR-C
    Progressive scan CMOS
    Global shutter
    Sensor Format 1/2.3"
    Effective Sensor Diagonal 7.9 mm
    Pixel Size (H x V) 3.45 x 3.45 µm
    Frame Rate (at Default Settings) 51 fps
    Product Family ace 2 R
    Mono / Color Color
    Image Data Interface Fast Ethernet (100 Mbit/s)
    Gigabit Ethernet (1000 Mbit/s)
    Pixel Formats See Pixel Format.
    Synchronization Via hardware trigger
    Via software trigger
    Via free run
    Exposure Time Control Via hardware trigger
    Programmable via the camera API
    Camera Power Requirements ≈4.8 W (typical) when using Power over Ethernet
    ≈3.4 W (typical) @ 12–24 VDC when supplied via I/O connector
    I/O Lines 1 opto-coupled input line
    2 general purpose I/O (GPIO) lines
    Lens Mount C-mount
    Size (L x W x H) 48.9 x 29 x 29 mm (without lens mount or connectors)
    62.2 x 29 x 29 mm (with lens mount and connectors)
    Weight < 105 g
    Conformity CE (includes RoHS), EAC, UKCA, UL Listed, FCC, KC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE)
    Certificates for your camera model
    For more information, see the Compliance section of the Basler website.

    Mechanical Dimensions (in mm) for Cameras with C-mount Lens Mount
