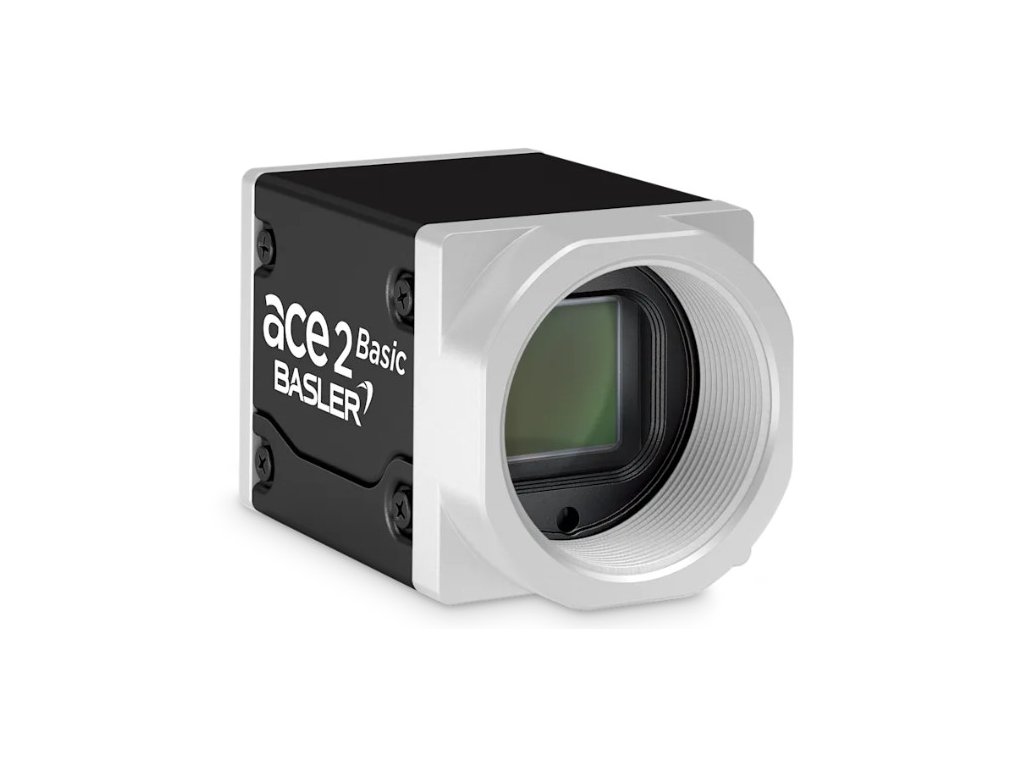

The Basler a2A2840 industrial camera is a high-performance model designed for demanding machine vision applications. It features an advanced Sony IMX546 CMOS sensor with global shutter, delivering 8.1 MP resolution (2840 × 2840 px) and a pixel size of 2.74 × 2.74 µm. Available interface options include GigE, 5GigE, and USB 3.0, enabling flexible integration into various systems.
The camera supports high frame rates of up to 67 fps in monochrome and 48 fps in color, making it ideal for dynamic inspection tasks. Its compact design (29 × 29 × 55.5 mm) and standard C-mount allow easy integration into different applications.
Equipped with an optical trigger, 2 GPIO ports, and supporting PoE or 12–24 V DC power, it consumes 2.8–5.3 W depending on the model. The operating temperature range of -10 °C to +60 °C ensures reliable performance in harsh conditions.
With these features, the Basler a2A2840 is perfect for automated quality inspection, robotics, optical measurement, and other applications demanding high precision and reliability.
