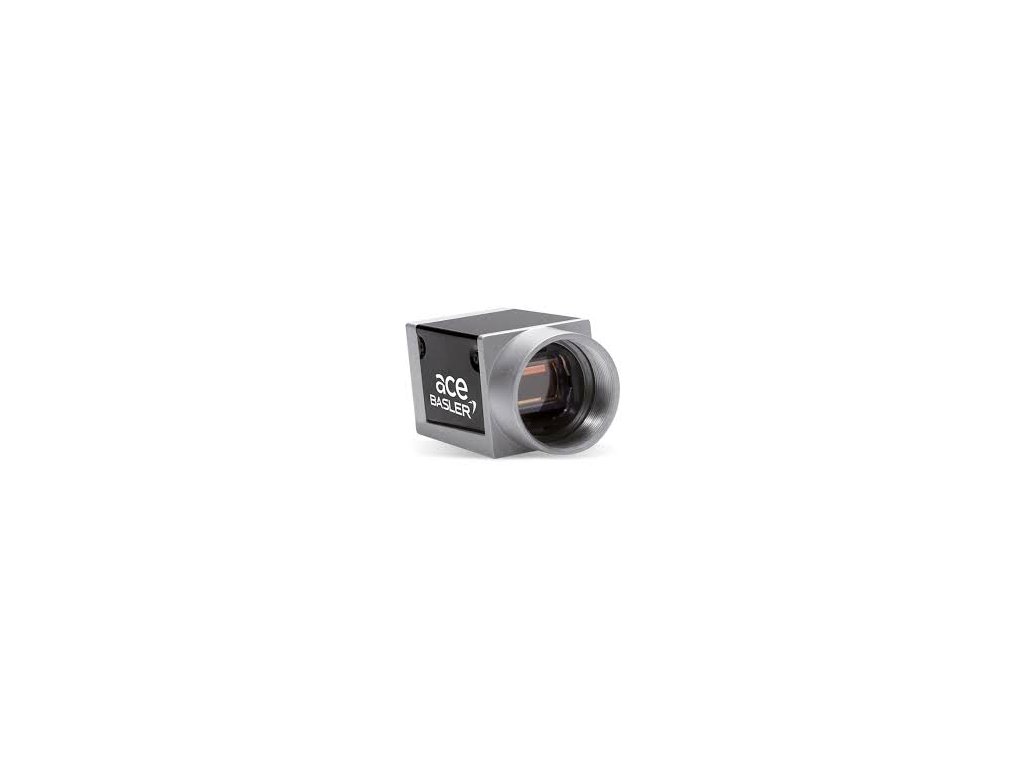

The Basler acA5472-5gc industrial camera from the ace U series features a high-performance color Sony IMX183 CMOS sensor. It delivers 20 MP resolution (5472 × 3648 px) with a 2.4 × 2.4 µm pixel size and global shutter, ensuring high-quality images even for fast-moving objects. The camera achieves up to 5 fps at full resolution.
With a GigE interface, it supports data transfer speeds of up to 1 Gbit/s, enabling efficient transmission of large datasets over long distances. It supports Power over Ethernet (PoE) or 12–24 V DC, with typical power consumption of 3.1 W via PoE and 2.8 W via DC.
The camera features optically isolated input and output ports for safe and reliable communication with external devices. Its compact size (42 × 29 × 29 mm) and weight under 90 g facilitate easy integration, and the standard C-mount allows compatibility with a wide range of lenses.
The Basler acA5472-5gc is ideal for applications requiring high image quality and reliable data transfer, including automation, robotics, quality inspection, and other industrial machine vision tasks.
