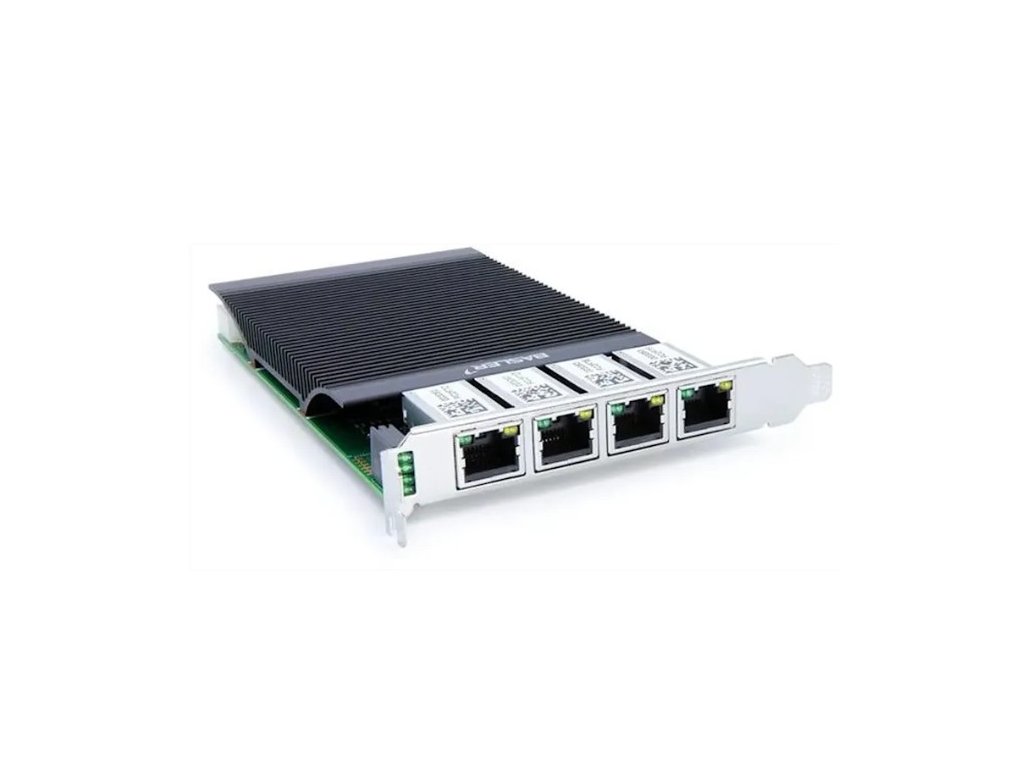

Basler GigE Interface Card, 4 Port PoE

Detailní popis produktu

Basler GigE Interface Card, 4-Port PoE – Technical Specifications

• Number of Ports: 4 independent Gigabit Ethernet ports (RJ45)

• PoE Power:

  • IEEE 802.3af (PoE) – up to 15.4 W per port

  • IEEE 802.3at (PoE+) – up to 25.5 W per port

• Bandwidth:

  • Per port: up to 1 Gbps

  • Total bandwidth: up to 4 Gbps

• PCIe Interface: PCIe 2.1 ×4 (compatible with ×8 and ×16 slots)

• Maximum Cable Length: up to 100 m

• OS Compatibility: Windows 10/11; Linux (stable kernel versions used in Ubuntu 23.10 LTS)

• Standards Support:

  • IEEE 1588 (Precision Time Protocol – PTP)

  • IEEE 802.1ax (Link Aggregation)

  • IEEE 802.3az (Energy Efficient Ethernet)

  • IEEE 802.3Q (VLANs)

• Certifications: CE, UKCA, FCC, KC
