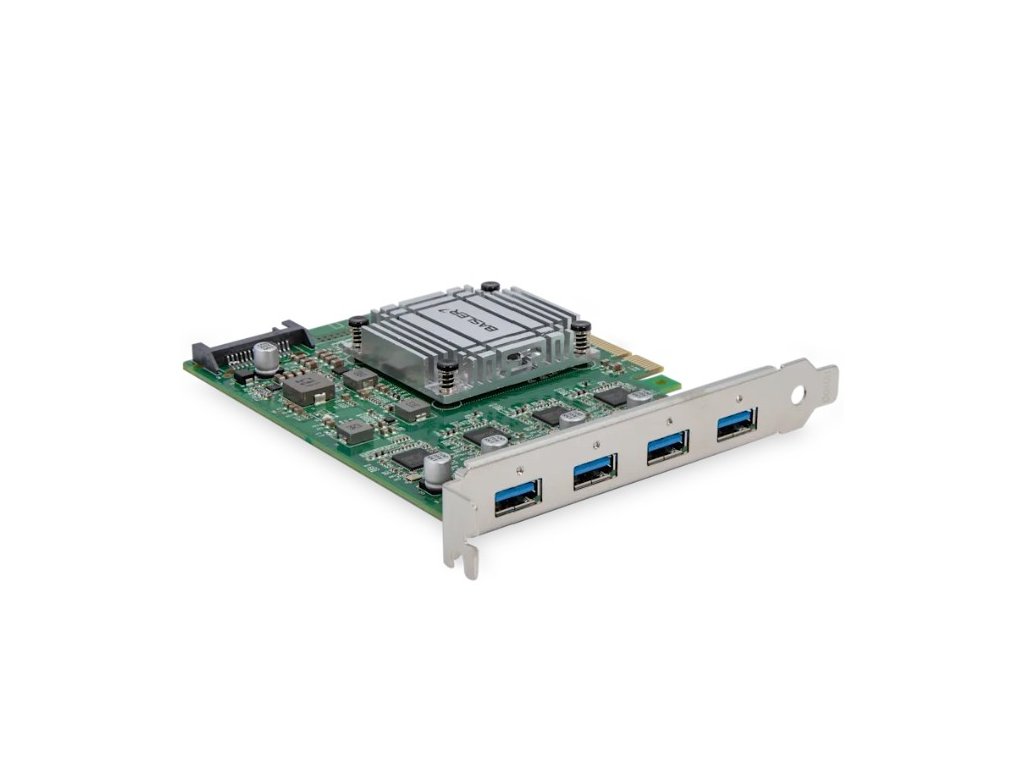

Basler USB Interface Card 4HC, 5G, 4-Port – Technical Specifications
Number of Ports: 4 independent USB 3.0 Type-A ports
Host Controllers: 4 × Fresco Logic FL1100EX
Bandwidth:
Per port: up to 5 Gbps (625 MB/s)
Total bandwidth: up to 20 Gbps (2,500 MB/s)
PCIe Interface: PCIe 2.0 ×4 (compatible with ×8 and ×16 slots)
Power:
Voltage per port: 5 V (±5%)
Current limit per port: 2,000 mA (±5%)
Total power capacity: max. 50 W
Protections: Overvoltage, overload, and short-circuit protection
OS Compatibility: Windows 10/11; Linux (stable kernel versions used in Ubuntu 23.10 LTS)
Certifications: CE, UKCA, FCC, KC
This card is ideal for installations requiring high bandwidth and stable data transfer, such as automated production lines or industrial testing equipment.
