LED Backlight 150mm 10W
Kód: 152Detailní popis produktu
| Parameter | Specification |
|---|---|
| Power | 10.1 W |
| Dimensions | 150 × 150 × 30 mm |
| IP Rating | IP54 |
| Color Temperature (CCT) | 6000 K (daylight white) |
| Warranty | 1 year |
| Beam Angle | 90° |
| Input Voltage | 24 V |
| Luminous Efficiency | 110 lm/W |
| Luminous Flux | 1507 lm |
| Operating Temperature | 0–40 °C |
| Color Rendering Index (CRI) | 85 |
| Model | KM-2FLP150150 |
| Brand | HIFLY |
| Emitted Colors | Red, Green, White, Blue |
| Light Source | LED |
| Dimmable | Yes |
| Body Color | Black |
| Lighting Solution | Machine Vision |
| Lifespan | 30,000 hours |
| Category | Machine Vision Lighting |
| Material | Aluminum Alloy + PMMA |
| Available Colors | White, Red, Green, Blue, IR, UV |
| ODM/OEM | Possible |
| Special Feature | Uniform illumination |
| Certification | CE, RoHS |
Files to download:
STEP model

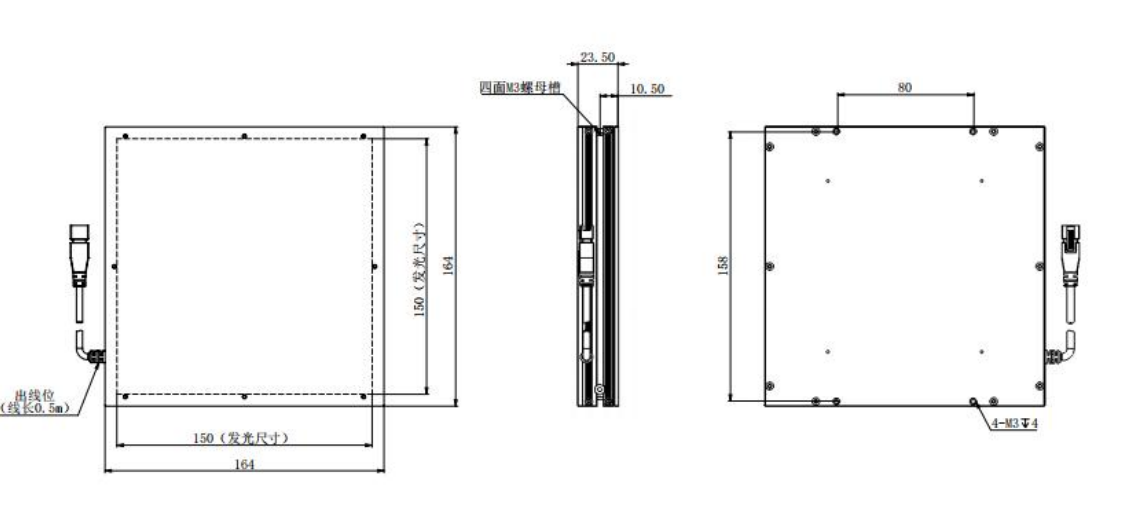

Tech drawing
PDF specifitactions
