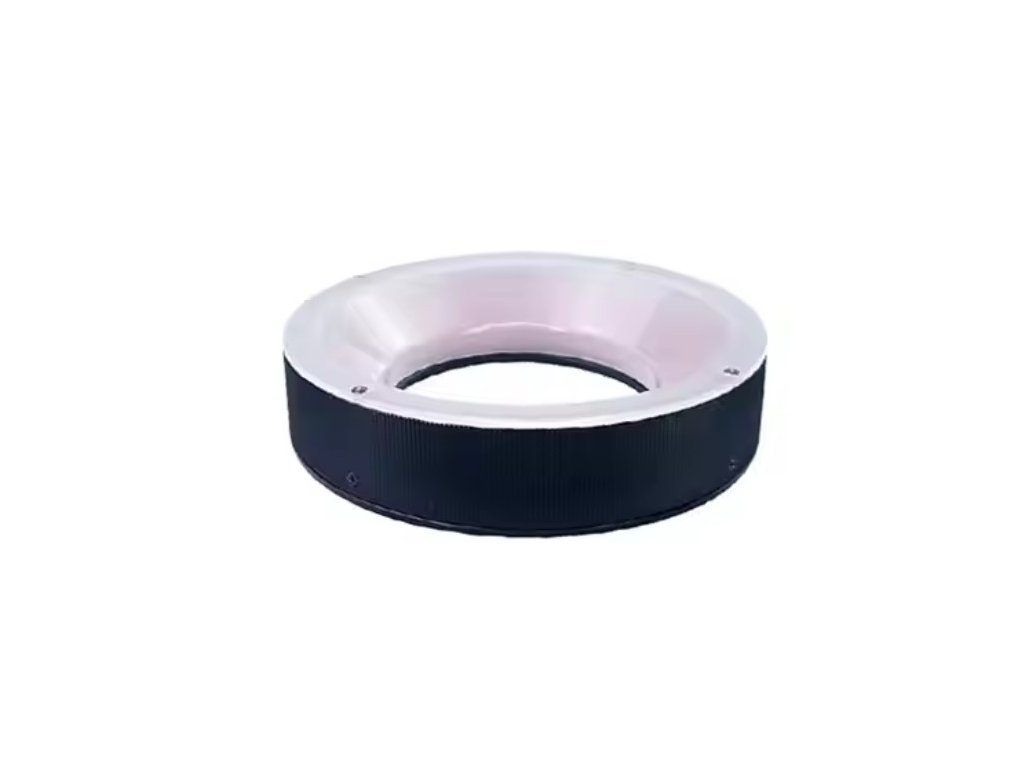

LED Ring light - KM-2RND10050A60

Detailní popis produktu

LED Ring Light KM-2RND10050A60 / KM-2RND8040A90-W-24V – Technical Specifications

• LED type: DIP/SMD (optional)

• Light color (optional): Red, White, Blue, Green

• Wavelength:

  • Red: 620–635 nm

  • White: 6000–6500 K

  • Blue: 465–470 nm

  • Green: 525–530 nm

• Power supply: DC 24 V max.

• Maximum power:

  • Red: 3.7 W

  • White/Blue/Green: 5.9 W

• Diameter:

  • Outer: 100 mm

  • Inner: 50 mm

• Thickness: 24 mm

• Lifespan:

  • Red: 50,000 hours

  • White: 30,000 hours

• Lighting angle: 60°

• Body material: Aluminum alloy with black anodized finish

• Cooling: Passive

• Connector: 3-pin flat connector

• Cable length: 0.5 m

• Operating temperature: -10 °C to +60 °C

Standards & durability:

• Static load resistance: 230 N

• Insulation resistance: >20 MΩ at DC 500 V

• Voltage resistance: AC 1000 V for 5 seconds

• Flammability: IEC 60707 compliant

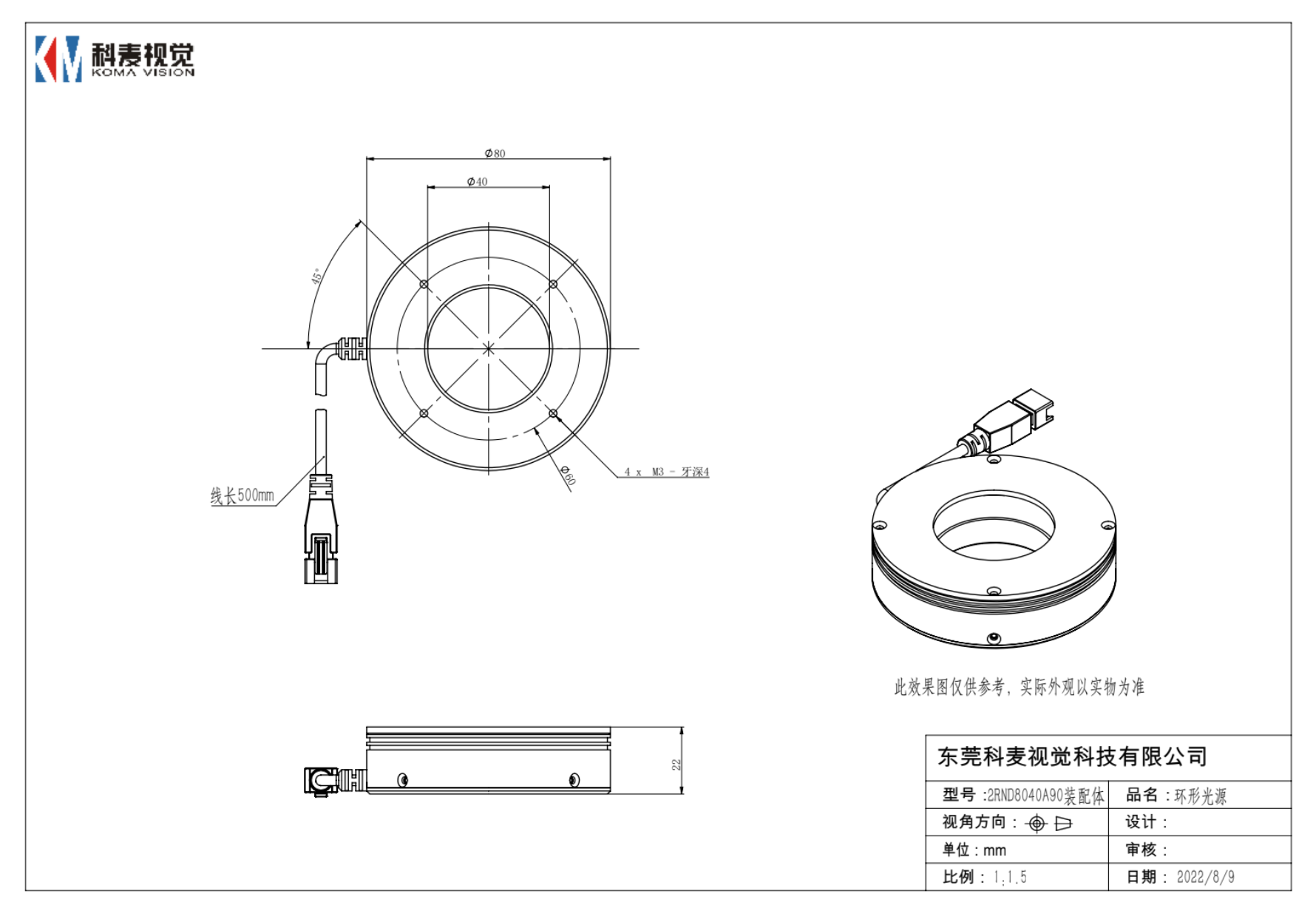

KM-2RND8040A90-W-24V dimensions:

• Outer diameter: 80 mm

• Inner diameter: 40 mm

• Tilt angle: 90°
